Bellow Seal

Leak Solve Seals offers advanced bellow sealing solutions, designed to handle extreme pressure, temperature, and shaft misalignment, providing reliable, maintenance-friendly performance in pumps and rotating equipment across demanding industrial applications.

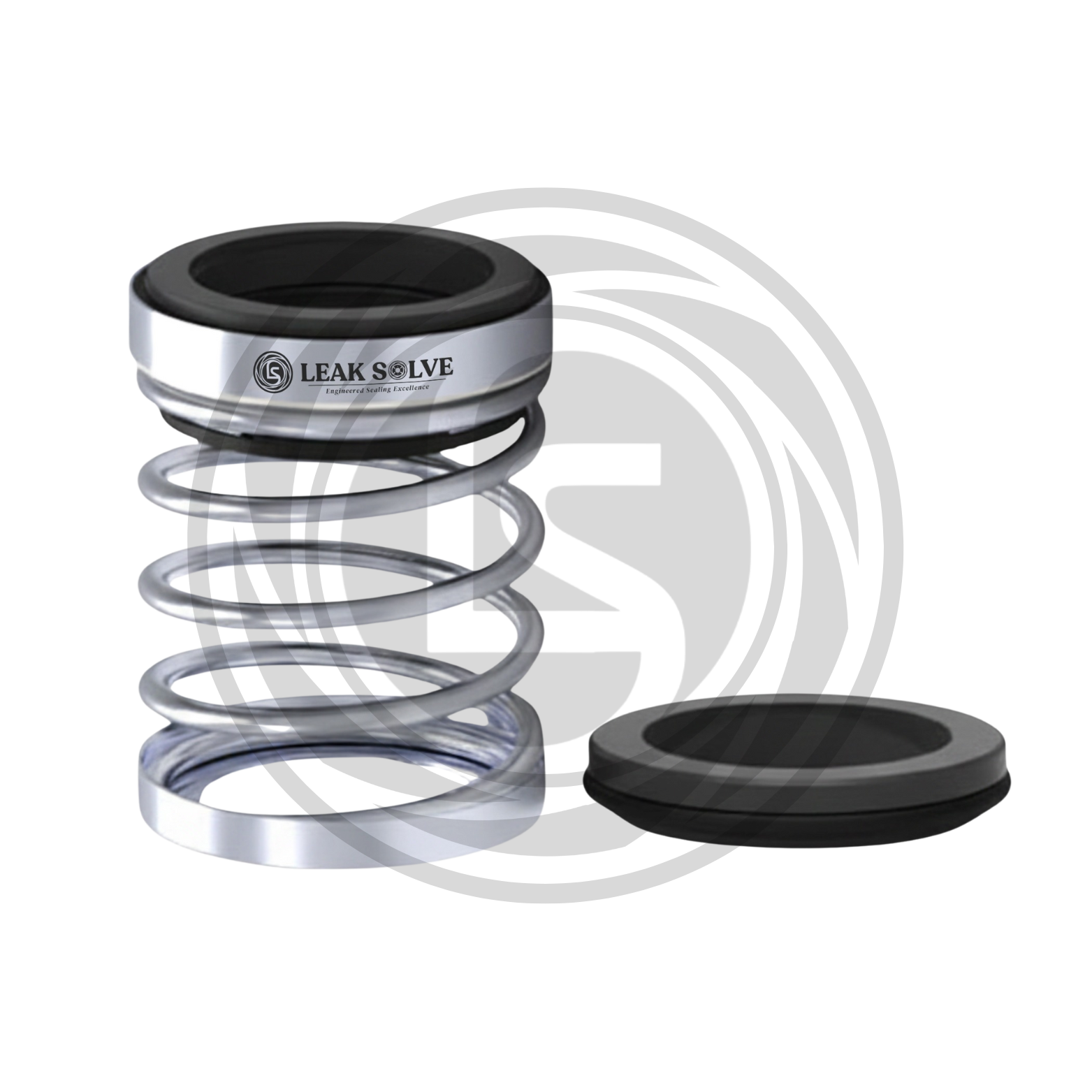

Rubber Bellow Mechanical Seal

Rubber Bellow Mechanical Seals are most commonly used rubber bellow seal, Due to its compact design it can be easily mounted. These has a unique rubber bellow secondary seal, which provides a high degree of axial flexibility to compensate for lack of concentricity of the shaft & misalignment & wear due to thrust movement of the shaft

Teflon Bellow Mechanical Seal

Teflon Bellow Mechanical Seals are Teflon Bellow seals designed to handle highly corrosive liquids. These mechanical seals are outside mounted with simple installation procedure and hence cost effective for corrosive media sealing. These have been designated as Fixed & replaceable bellow face respectively. For replaceable versions there is flexibility for selection of face material as Perth) media to be sealed, which can be easily removed & replaced & is highly desirable in severe applications.

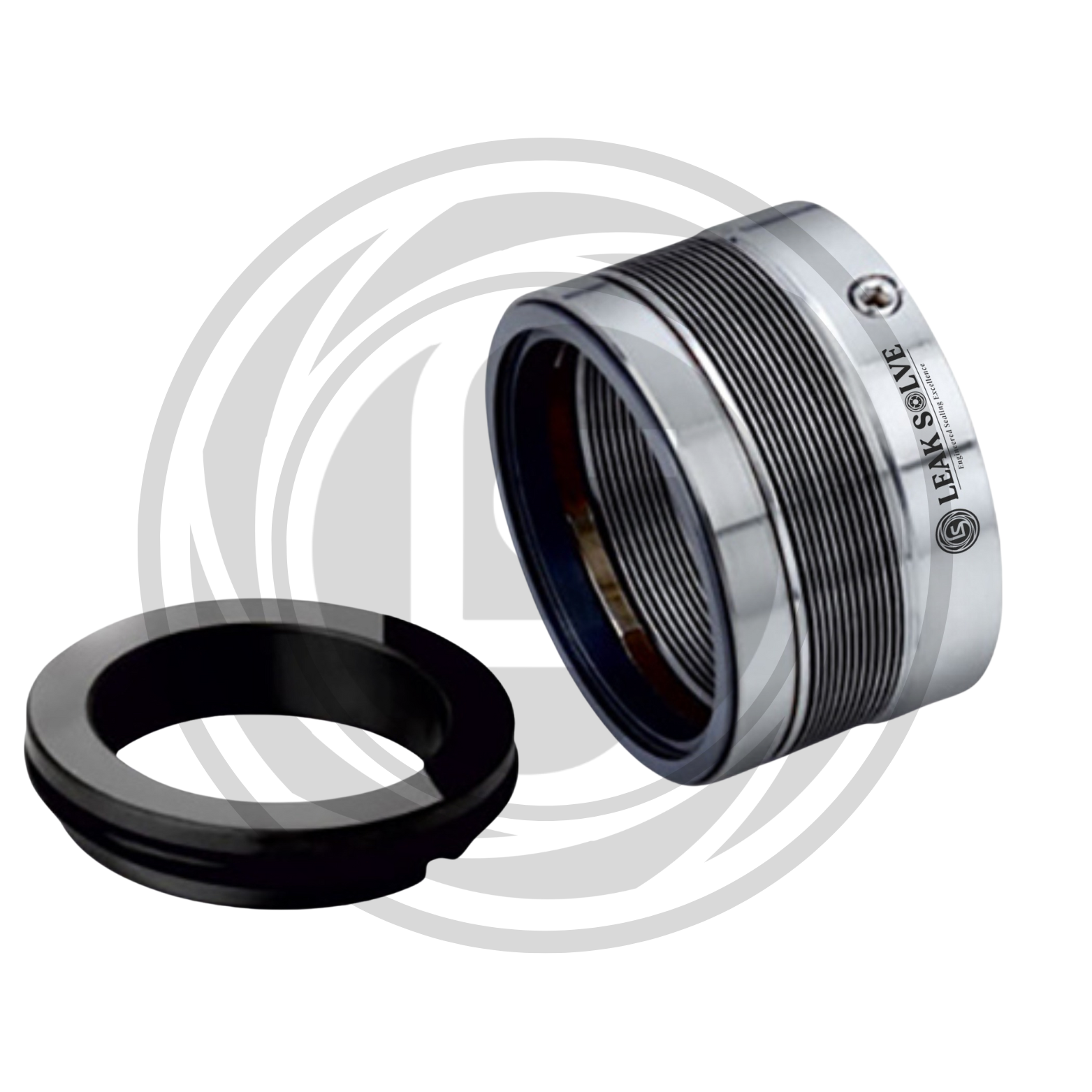

Metal Bellow Mechanical Seal

Metal Bellow Mechanical Seals is an inherently balanced metal bellow mechanical seal. These seals are independent of direction of rotation. The unique feature of this type of seal is that, there are no dynamic O' rings and therefore it will never hang-up or damage the shaft and sleeve, it also has an ability to handle corrosive as well as abrasive & viscous media. These seals have self-cleaning & no clogging construction. With selection of special bellow material it can be used in highly corrosive media.

Metal Bellow Cartrige Seal

Metal Bellow Cartridge Seals are widely used in high temperature and highly corrosive media and suitable for high start-up torque since the bellows unit is independent of torque transmission. The unique feature of Welded Metal Bellow Mechanical Seals is that, there is no dynamic ‘O’ rings and therefore it will never hang up or damage the shaft and sleeve.
